Recognizing Knee Pathologies by Classifying Instantaneous Screws of the Six Degrees-of-Freedom Knee Motion

Alon Wolf, Amir Degani

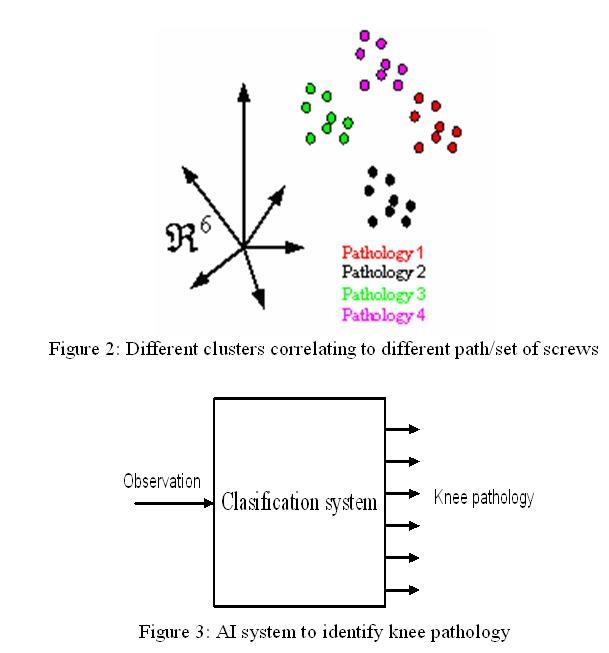

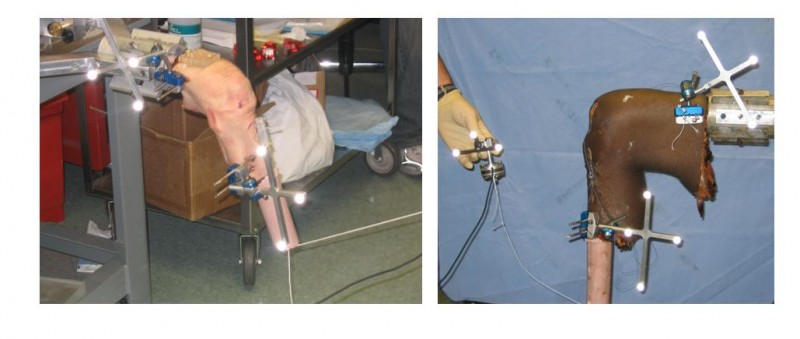

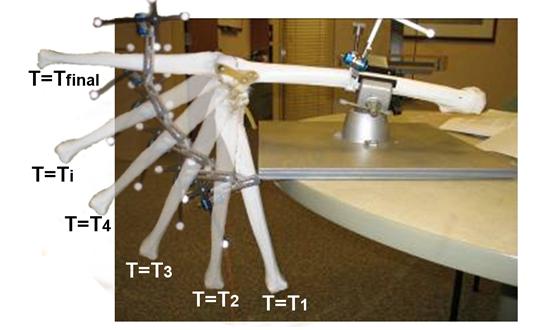

We address the problem of knee pathology assessment by using screw theory to describe the knee motion and by using the screw representation of the motion as an input to a machine learning classifier. The flexions of knees with different pathologies are tracked using an optical tracking system. The instantaneous screw parameters which describe the transformation of the tibia with respect to the femur in each two successive observation is represented as the instantaneous screw axis of the motion given in its Plücker line coordinates along with its corresponding pitch. The set of instantaneous screw parameters associated with a particular knee with a given pathology is then identified and clustered in R6 to form a “signature” of the motion for the given pathology. Sawbones model and two cadaver knees with different pathologies were tracked, and the resulting screws were used to train a classifier system.

Click on images to enlarge
